This tutorial is the third in a series of 12 which teach you how to build MVC 5 applications using Entity Framework for data access and Visual Basic. This tutorial explores how to add sorting, filtering and paging to MVC 5 Views using the Entity Framework. You will also look at implementing simple Grouping.

The original tutorial series, produced by Tom Dykstra and Rick Anderson ( @RickAndMSFT ) was written using the C# language. My versions keep as close to the originals as possible, changing only the coding language. The narrative text is largely unchanged from the original and is used with permission from Microsoft.

This tutorial series teaches you how to create ASP.NET MVC 5 applications using the Entity Framework 6 and Visual Studio 2013 Express for Web. This tutorial uses the Code First workflow. For information about how to choose between Code First, Database First, and Model First, see Entity Framework Development Workflows.

The tutorial series comprises 12 sections in total. They are intended to be followed sequentially as each section builds on the knowledge imparted in the previous sections. Progress through the sections is reflected in a Visual Studio Express for Web project download that accompanies each section which features the web application that you build through the series.

Download the code

The code for this section is available here. Save the .zip file to a convenient location and then extract the contents. Make sure you have an edition of Visual Studio 2013 installed (Express for Web, Professional, Premium or Ultimate) and double click the .sln file. Once the project is opened in your IDE, press Shift+Ctrl+B to build the solution. This will ensure that all packages are restored from Nuget and may take a while depending on your Internet connection speed.

The navigation path through the series is as follows:

  1. Creating an Entity Framework Data Model
  2. Implementing Basic CRUD Functionality
  3. Sorting, Filtering and Paging
  4. Connection Resiliency and Command Interception
  5. Code First Migrations and Deployment
  6. Creating a More Complex Data Model
  7. Reading Related Data
  8. Updating Related Data
  9. Async and Stored Procedures
  10. Handling Concurrency
  11. Implementing-Inheritance
  12. Advanced Entity Framework Scenarios

Sorting, Filtering an Paging

In the previous tutorial you implemented a set of web pages for basic CRUD operations for Student entities. In this tutorial you'll add sorting, filtering, and paging functionality to the Students Index page. You'll also create a page that does simple grouping.

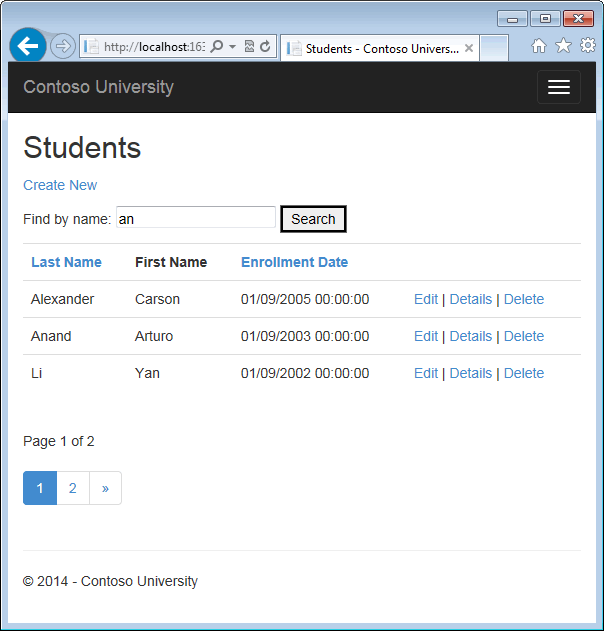

The following illustration shows what the page will look like when you're done. The column headings are links that the user can click to sort by that column. Clicking a column heading repeatedly toggles between ascending and descending sort order.

MVC5 With EF6

Add Column Sort Links to the Students Index Page

To add sorting to the Student Index page, you'll change the Index method of the Student controller and add code to the Student Index view.

Add Sorting Functionality to the Index Method

In Controllers\StudentController.vb replace the Index method with the following code:

Function Index(ByVal sortOrder As String) As ActionResult
    ViewBag.NameSortParm = If(String.IsNullOrEmpty(sortOrder), "name_desc", String.Empty)
    ViewBag.DateSortParm = If(sortOrder = "Date", "date_desc", "Date")
    Dim students = From s In db.Students Select s
    Select Case sortOrder
        Case "name_desc"
            students = students.OrderByDescending(Function(s) s.LastName)
        Case "Date"
            students = students.OrderBy(Function(s) s.EnrollmentDate)
        Case "date_desc"
            students = students.OrderByDescending(Function(s) s.EnrollmentDate)
        Case Else
            students = students.OrderBy(Function(s) s.LastName)
    End Select
    Return View(students.ToList())
End Function

This code receives a sortOrder parameter from the query string in the URL. The query string value is provided by ASP.NET MVC as a parameter to the action method. The parameter will be a string that's either "Name" or "Date", optionally followed by an underscore and the string "desc" to specify descending order. The default sort order is ascending.

The first time the Index page is requested, there's no query string. The students are displayed in ascending order by LastName, which is the default as established by the fall-through case in the Select Case statement. When the user clicks a column heading hyperlink, the appropriate sortOrder value is provided in the query string.

The two ViewBag variables are used so that the view can configure the column heading hyperlinks with the appropriate query string values:

ViewBag.NameSortParm = If(String.IsNullOrEmpty(sortOrder), "name_desc", String.Empty)
ViewBag.DateSortParm = If(sortOrder = "Date", "date_desc", "Date")

These are ternary statements. The first one specifies that if the sortOrder parameter is null or empty, ViewBag.NameSortParm should be set to "name_desc"; otherwise, it should be set to an empty string. These two statements enable the view to set the column heading hyperlinks as follows:

Current sort order Last Name Hyperlink Date Hyperlink
Last Name ascending descending ascending
Last Name descending ascending ascending
Date ascending ascending descending
Date descending ascending ascending

The method uses LINQ to Entities to specify the column to sort by. The code creates an IQueryable variable before the Select Case statement, modifies it in the Select Case statement, and calls the ToList method after the Select Case statement. When you create and modify IQueryable variables, no query is sent to the database. The query is not executed until you convert the IQueryable object into a collection by calling a method such as ToList. Therefore, this code results in a single query that is not executed until the Return View statement.

As an alternative to writing different LINQ statements for each sort order, you can dynamically create a LINQ statement. For information about dynamic LINQ, see Dynamic LINQ.

Add Column Heading Hyperlinks to the Student Index View

In Views\Student\Index.vbhtml, replace the <tr> and <th> elements for the heading row with the highlighted code:

<p>
    @Html.ActionLink("Create New", "Create")
</p>
<table class="table">
    <tr>
        <th>
            @Html.ActionLink("Last Name", "Index", New With {.sortOrder = ViewBag.NameSortParm})
        </th>
        <th>
            First Name
        </th>
        <th>
            @Html.ActionLink("Enrollment Date", "Index", New With {.sortOrder = ViewBag.DateSortParm})
        </th>
        <th></th>
    </tr>

@For Each item In Model

This code uses the information in the ViewBag properties to set up hyperlinks with the appropriate query string values.

Run the page and click the Last Name and Enrollment Date column headings to verify that sorting works.

After you click the Last Name heading, students are displayed in descending last name order.

MVC5 With EF6

Add a Search Box to the Students Index Page

To add filtering to the Students Index page, you'll add a text box and a submit button to the view and make corresponding changes in the Index method. The text box will let you enter a string to search for in the first name and last name fields.

Add Filtering Functionality to the Index Method

In Controllers\StudentController.vb, replace the Index method with the following code (the changes are highlighted):

Function Index(ByVal sortOrder As String, searchString As String) As ActionResult
    ViewBag.NameSortParm = If(String.IsNullOrEmpty(sortOrder), "name_desc", String.Empty)
    ViewBag.DateSortParm = If(sortOrder = "Date", "date_desc", "Date")

    Dim students = From s In db.Students Select s
    If Not String.IsNullOrEmpty(searchString) Then
        students = students.Where(Function(s) s.LastName.ToUpper().Contains(searchString.ToUpper()) _
                                              Or s.FirstMidName.ToUpper().Contains(searchString.ToUpper()))
    End If
    Select Case sortOrder
        Case "name_desc"
            students = students.OrderByDescending(Function(s) s.LastName)
        Case "Date"
            students = students.OrderBy(Function(s) s.EnrollmentDate)
        Case "date_desc"
            students = students.OrderByDescending(Function(s) s.EnrollmentDate)
        Case Else
            students = students.OrderBy(Function(s) s.LastName)
    End Select

    Return View(students.ToList())
End Function

You've added a searchString parameter to the Index method. You've also added  to the LINQ statement a Where clause that selects only students whose first name or last name contains the search string. The search string value is received from a text box that you'll add to the Index view.The statement that adds the where clause is executed only if there's a value to search for.

Note In many cases you can call the same method either on an Entity Framework entity set or as an extension method on an in-memory collection. The results are normally the same but in some cases may be different.

For example, the .NET Framework implementation of the Contains method returns all rows when you pass an empty string to it, but the Entity Framework provider for SQL Server Compact 4.0 returns zero rows for empty strings. Therefore the code in the example (putting the Where statement inside an if statement) makes sure that you get the same results for all versions of SQL Server. Also, the .NET Framework implementation of the Contains method performs a case-sensitive comparison by default, but Entity Framework SQL Server providers perform case-insensitive comparisons by default. Therefore, calling the ToUpper method to make the test explicitly case-insensitive ensures that results do not change when you change the code later to use a repository, which will return an IEnumerable collection instead of an IQueryable object. (When you call the Contains method on an IEnumerable collection, you get the .NET Framework implementation; when you call it on an IQueryable object, you get the database provider implementation.)

Null handling may also be different for different database providers or when you use an IQueryable object compared to when you use an IEnumerable collection. For example, in some scenarios a Where condition such as table.Column <> 0 may not return columns that have null as the value. For more information, see Incorrect handling of null variables in 'where' clause.

Add a Search Box to the Student Index View

In Views\Student\Index.vbhtml, add the highlighted code immediately before the opening table tag in order to create a caption, a text box, and a Search button.

<p>
    @Html.ActionLink("Create New", "Create")
</p>
@Using Html.BeginForm()
    @<p>
        Find by name: @Html.TextBox("SearchString")
        <input type="submit" value="Search" /></p>
End Using
<table class="table">
    <tr>

Run the page, enter a search string, and click Search to verify that filtering is working.

MVC5 With EF6

Notice the URL doesn't contain the "an" search string, which means that if you bookmark this page, you won't get the filtered list when you use the bookmark. You'll change the Search button to use query strings for filter criteria later in the tutorial.

Add Paging to the Students Index Page

To add paging to the Students Index page, you'll start by installing the PagedList.Mvc NuGet package. Then you'll make additional changes in the Index method and add paging links to the Index view. PagedList.Mvc is one of many good paging and sorting packages for ASP.NET MVC, and its use here is intended only as an example, not as a recommendation for it over other options. The following illustration shows the paging links.

MVC5 With EF6

Install the PagedList.MVC NuGet Package

The NuGet PagedList.Mvc package automatically installs the PagedList package as a dependency. The PagedList package installs a PagedList collection type and extension methods for IQueryable and IEnumerable collections. The extension methods create a single page of data in a PagedList collection out of your IQueryable or IEnumerable, and the PagedList collection provides several properties and methods that facilitate paging. The PagedList.Mvc package installs a paging helper that displays the paging buttons.

From the Tools menu, select Library Package Manager and then Package Manager Console.

In the Package Manager Console window, make sure the Package source is nuget.org and the Default project is ContosoUniversity, and then enter the following command:

Install-Package PagedList.Mvc

MVC5 With EF6

Add Paging Functionality to the Index Method

In Controllers\StudentController.vb, add an Imports statement for the PagedList namespace:

@Imports PagedList.Mvc

Replace the Index method with the following code:

Function Index(ByVal sortOrder As String, currentFilter As String, searchString As String, page As Integer?) As ActionResult
    ViewBag.CurrentSort = sortOrder
    ViewBag.NameSortParm = If(String.IsNullOrEmpty(sortOrder), "name_desc", String.Empty)
    ViewBag.DateSortParm = If(sortOrder = "Date", "date_desc", "Date")

    If Not searchString Is Nothing Then
        page = 1
    Else
        searchString = currentFilter
    End If

    ViewBag.CurrentFilter = searchString

    Dim students = From s In db.Students Select s
    If Not String.IsNullOrEmpty(searchString) Then
        students = students.Where(Function(s) s.LastName.ToUpper().Contains(searchString.ToUpper()) _
                                      Or s.FirstMidName.ToUpper().Contains(searchString.ToUpper()))
    End If
    Select Case sortOrder
        Case "name_desc"
            students = students.OrderByDescending(Function(s) s.LastName)
        Case "Date"
            students = students.OrderBy(Function(s) s.EnrollmentDate)
        Case "date_desc"
            students = students.OrderByDescending(Function(s) s.EnrollmentDate)
        Case Else
            students = students.OrderBy(Function(s) s.LastName)
    End Select

    Dim pageSize As Integer = 3
    Dim pageNumber As Integer = If(page, 1)
    Return View(students.ToPagedList(pageNumber, pageSize))
End Function

This code adds a page parameter, a current sort order parameter, and a current filter parameter to the method signature:

Function Index(ByVal sortOrder As String, currentFilter As String, searchString As String, page As Integer?) As ActionResult

The first time the page is displayed, or if the user hasn't clicked a paging or sorting link, all the parameters will be null.  If a paging link is clicked, the page variable will contain the page number to display.

A ViewBag property provides the view with the current sort order, because this must be included in the paging links in order to keep the sort order the same while paging:

ViewBag.CurrentSort = sortOrder

Another property, ViewBag.CurrentFilter, provides the view with the current filter string. This value must be included in the paging links in order to maintain the filter settings during paging, and it must be restored to the text box when the page is redisplayed. If the search string is changed during paging, the page has to be reset to 1, because the new filter can result in different data to display. The search string is changed when a value is entered in the text box and the submit button is pressed. In that case, the searchString parameter is not null.

If Not searchString Is Nothing Then
    page = 1
Else
    searchString = currentFilter
End If

At the end of the method, the ToPagedList extension method on the students IQueryable object converts the student query to a single page of students in a collection type that supports paging. That single page of students is then passed to the view:

Dim pageSize As Integer = 3
Dim pageNumber As Integer = If(page, 1)
Return View(students.ToPagedList(pageNumber, pageSize))

The ToPagedList method takes a page number. The If operator called with two arguments is the equivalent to the C# null-coalescing operator. The operator returns the first non-null value from the two arguments. If page is Nothing, 1 is returned, otherwise the value of page is returned.

Add Paging Links to the Student Index View

In Views\Student\Index.vbhtml, replace the existing code with the following code. The changes are highlighted.

@ModelType PagedList.IPagedList(Of ContosoUniversity.Models.Student)
@Imports PagedList.Mvc
<link href="~/Content/PagedList.css" rel="stylesheet" type="text/css" />
@Code
    ViewBag.Title = "Students"
End Code

<h2>Students</h2>

<p>
    @Html.ActionLink("Create New", "Create")
</p>
@Using Html.BeginForm("Index", "Student", FormMethod.Get)
    @<p>
        Find by name: @Html.TextBox("SearchString", TryCast(ViewBag.CurrentFilter, String))
        <input type="submit" value="Search" /></p>
End Using
<table class="table">
    <tr>
        <th>
            @Html.ActionLink("Last Name", "Index", New With {.sortOrder = ViewBag.NameSortParm, .currentFilter = ViewBag.CurrentFilter})
        </th>
        <th>
            First Name
        </th>
        <th>
            @Html.ActionLink("Enrollment Date", "Index", New With {.sortOrder = ViewBag.DateSortParm, .currentFilter = ViewBag.CurrentFilter})
        </th>
        <th></th>
    </tr>

@For Each item In Model
    @<tr>
        <td>
            @Html.DisplayFor(Function(modelItem) item.LastName)
        </td>
        <td>
            @Html.DisplayFor(Function(modelItem) item.FirstMidName)
        </td>
        <td>
            @Html.DisplayFor(Function(modelItem) item.EnrollmentDate)
        </td>
        <td>
            @Html.ActionLink("Edit", "Edit", New With {.id = item.ID }) |
            @Html.ActionLink("Details", "Details", New With {.id = item.ID }) |
            @Html.ActionLink("Delete", "Delete", New With {.id = item.ID })
        </td>
    </tr>
Next

</table>
<br />
Page @IIf(Model.PageCount < Model.PageNumber, 0 , Model.PageNumber) of @Model.PageCount
@Html.PagedListPager(Model, Function(page) Url.Action("Index", _
      New With {page, .sortOrder = ViewBag.CurrentSort, .currentFilter = ViewBag.CurrentFilter}))

The @ModelType statement at the top of the page specifies that the view now gets a PagedList object instead of a List object.

The Imports statement for PagedList.Mvc gives access to the MVC helper for the paging buttons.

The code uses an overload of BeginForm that allows it to specify FormMethod.Get.

@Using Html.BeginForm("Index", "Student", FormMethod.Get)
    @<p>
        Find by name: @Html.TextBox("SearchString", TryCast(ViewBag.CurrentFilter, String))
        <input type="submit" value="Search" /></p>
End Using

The default BeginForm submits form data with a POST, which means that parameters are passed in the HTTP message body and not in the URL as query strings. When you specify HTTP GET, the form data is passed in the URL as query strings, which enables users to bookmark the URL. The W3C guidelines for the use of HTTP GET recommend that you should use GET when the action does not result in an update.

The text box is initialized with the current search string so when you click a new page you can see the current search string.

Find by name: @Html.TextBox("SearchString", TryCast(ViewBag.CurrentFilter, String))

The column header links use the query string to pass the current search string to the controller so that the user can sort within filter results:

@Html.ActionLink("Last Name", "Index", New With {.sortOrder = ViewBag.NameSortParm, .currentFilter = ViewBag.CurrentFilter})

The current page and total number of pages are displayed.

Page @IIf(Model.PageCount < Model.PageNumber, 0 , Model.PageNumber) of @Model.PageCount

If there are no pages to display, "Page 0 of 0" is shown. (In that case the page number is greater than the page count because Model.PageNumber is 1, and Model.PageCount is 0.)

The paging buttons are displayed by the PagedListPager helper:

@Html.PagedListPager(Model, Function(page) Url.Action("Index", _
      New With {page, .sortOrder = ViewBag.CurrentSort, .currentFilter = ViewBag.CurrentFilter}))

The PagedListPager helper provides a number of options that you can customize, including URLs and styling.  For more information, see TroyGoode/PagedList on the GitHub site.

Run the page.

MVC5 With EF6

Click the paging links in different sort orders to make sure paging works. Then enter a search string and try paging again to verify that paging also works correctly with sorting and filtering.

MVC5 With EF6

Create an About Page That Shows Student Statistics

For the Contoso University website's About page, you'll display how many students have enrolled for each enrollment date. This requires grouping and simple calculations on the groups. To accomplish this, you'll do the following:

  • Create a view model class for the data that you need to pass to the view.
  • Modify the About method in the Home controller.
  • Modify the About view.

Create the View Model

Create a ViewModels folder in the project folder. In that folder, add a class file EnrollmentDateGroup.vb and replace the template code with the following code:

Imports System.ComponentModel.DataAnnotations
Namespace ViewModels
    Public Class EnrollmentDateGroup
        <DataType(DataType.Date)>
        Public Property EnrollmentDate As DateTime?
        Public Property StudentCount As Integer
    End Class
End Namespace

Modify the Home Controller

In HomeController.vb, add the following Imports statements at the top of the file:



Imports ContosoUniversity.DAL
Imports ContosoUniversity.ViewModels
Add a variable for the database context for the class:



Public Class HomeController
    Inherits System.Web.Mvc.Controller

    Dim db As SchoolContext = New SchoolContext()

Replace the About method with the following code:

Function About() As ActionResult
    Dim data As IQueryable(Of EnrollmentDateGroup) = db.Students.GroupBy _
                                                     (Function(s) s.EnrollmentDate).Select _
                                                     (Function(g) New EnrollmentDateGroup With _
                                                                  {.EnrollmentDate = g.Key, .StudentCount = g.Count()})
    Return View(data.ToList())
End Function

The LINQ statement groups the student entities by enrollment date, calculates the number of entities in each group, and stores the results in a collection of EnrollmentDateGroup view model objects.

Add a Dispose method:

Protected Overrides Sub Dispose(disposing As Boolean)
    db.Dispose()
    MyBase.Dispose(disposing)
End Sub

Modify the About View

Replace the code in the Views\Home\About.vbhtml file with the following code:

@ModelType IEnumerable(Of ContosoUniversity.ViewModels.EnrollmentDateGroup)
@Code
    ViewBag.Title = "Student Body Statistics"
End Code

<h2>Student Body Statistics</h2>

<table>
    <tr>
        <th>
            Enrollment Date
        </th>
        <th>
            Students
        </th>
    </tr>

    @For Each item In Model
    @<tr>
        <td>
            @Html.DisplayFor(Function(modelItem) item.EnrollmentDate)
        </td>
        <td>
            @item.StudentCount
        </td>
    </tr>
    Next
</table>

Run the app and click the About link. The count of students for each enrollment date is displayed in a table.

MVC5 With EF6s

Summary

In this tutorial you've seen how to create a data model and implement basic CRUD, sorting, filtering, paging, and grouping functionality. In the next tutorial you'll begin looking at more advanced topics by expanding the data model.



You might also like...

Date Posted:
Last Updated:
Posted by:
Total Views to date: 28617

7 Comments

- Jim Parzych

in this section:

==========
In Controllers\StudentController.vb, add an Imports statement for the PagedList namespace:

@Imports PagedList.Mvc
===========

It should be

Imports PagedList

- Andy

Hello

I'm testing your sorting instructions above. This is great and I was able to get it to work with my application/database. The only problem was that when I have a column that is showing the text from another table (foreign key) the code errors out.

How do I get this to work with this type of column. The regular columns work great and sort properly.

- Mike

@Andy,

You should post a question to the forums at http://forums.asp.net. When you do, make sure you include the error message you get and the code that causes it.

- Gjuro

there is a missing parenthesis in

Return View(students.ToList()

- Mike

@Gjuro

Thanks

- Moshie Samuel

9ce one I use VB.NET but hardly get tutorials on it and spend lots of time converting C# codes before using on projects thanks and keep posting more

- Mike

This is the first example that I have found that works.

Recent Comments

Satyabrata Mohapatra 23/07/2017 16:43
In response to Razor Pages - The Elevator Pitch
@Dale Severin You can continue to build apps using asp.net web pages....

Satyabrata Mohapatra 23/07/2017 16:40
In response to Sending Email in Razor Pages
Thanks for sharing...learned a lot...

Gfw 22/07/2017 11:53
In response to Sending Email in Razor Pages
Question... Does System.Net.Mail support SSL?...

Dale Severin 20/07/2017 03:38
In response to Razor Pages - The Elevator Pitch
I work with razor web pages extensively. I appreciate the rapid development it permits me to I am as...

Obinna Okafor 14/07/2017 01:19
In response to Routing in Razor Pages
Thank you, Mike. Good post....

Satyabrata Mohapatra 11/07/2017 16:02
In response to Routing in Razor Pages
Very powerful routing system!!...

Cyrus 05/07/2017 03:41
In response to Razor Pages - Getting Started With The Preview
How can I trim packages and services as much as possible to use just razor pages? I don’t want to to...

Harris Boyce 04/07/2017 04:17
In response to Razor Pages - The Elevator Pitch
As a developer of a couple "trivial" web pages applications used by non-profits that wouldn't have I...

Cyrus 28/06/2017 20:25
In response to Razor Pages - Getting Started With The Preview
.net core 2.0 preview 2: <a...

ojorma 17/06/2017 09:24
In response to Razor Pages - The Elevator Pitch
Finally I can say goodbye to webforms...
